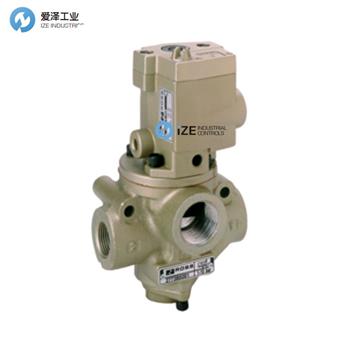

ROSS閥2773B4011技術規格
DESCRIPTION: | 27 Series, 3/2 Single Solenoid Controlled, Spring Return, Normally Closed, 1/2" In-Out,1/2" Exhaust NPT |
Function | 3/2 Single |
Return Type | Spring |
Default Position | Normally Closed |
Actuation | Solenoid Controlled |
Port Size (in-Out) | 1/2 |
Port Size (Exhaust) | 1/2 |
Port Thread | NPT |
Basic Size | 3/8 |
Cv (In-Out) | 3.3 |
Cv (Exhaust) | 5.3 |
Construction | Poppet |
Mounting | Inline |
Manual Override | Non-locking |
Connector Type | Hard wired (1/2 inch conduit) |
Certifications | SIL |
Flow Media | Filtered Air |
Inlet Pressure Range | 15 TO 150 PSIG (1 TO 10 BAR) |
Media Temperature Range | 40 TO 175 F (4 TO 80 C) |
Ambient Temperature Range | 40 TO 175 F (4 TO 80 C) |
WEIGHT: | 2.5 lbs (1.13 kg) |
ROSS閥27系列介紹
重量輕；緊湊的尺寸
可提供具有特殊控制功能的閥門：
定時順序致動和/或去致動
從一個壓力源瞬時控制驅動/關閉
致動力倍增器，用于低信號壓力
可選擇用于三種不同溫度范圍的內部組件
可以安裝在執行器附近，減少每次循環加壓/排氣的管道長度
易于現場轉換，可與外部先導電源一起使用
預期壽命長
在閥門的整個生命周期內保持一致的響應時間
Low weight; compact size
Valves available with special control functions:
Timed sequence actuation and / or deactuation
Momentary control of actuation / deactuation from one pressure source
Actuating force multiplier , for use with low signal pressures
Available with choices of internal components for three different temperature ranges
Can be mounted close to actuator , reducing length of pipe to be pressurized / exhausted on each cycle
Easily field-convertible for use with an external pilot supply
Long life expectancy
Consistent response times over the life of the valve
ROSS閥27系列其他常用型號：
ROSS 2773B4001
ROSS 2773B4002
ROSS 2773B4003
ROSS 2773B4004
ROSS 2773B4005
ROSS 2773B4006
ROSS 2773B4007
ROSS 2773B4009
ROSS 2773B4011
ROSS 2773B4012
ROSS 2773B4013
ROSS 2773B4015
ROSS 2773B4016
ROSS 2773B4017
ROSS 2773B4019
ROSS 2773B4037
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥2773B4011的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
