ACKSYS工業路由器RUGGEDAIR/1A技術規格
Technical characteristics overview | |
Ethernet interface | 2-port Ethernet 10/100 auto-sensing, Base TX, auto MDI/MDIX, M12 D-coded Ethernet interface |
WiFi interface | 1 radio 802.11n (MIMO 2T2R, 300 Mbps), ANI (Adaptive Noise Immunity) |
WiFi radio data rate | 802.11a: 6, 9, 12, 18, 24, 36, 48 & 54 Mbps |
Operating frequencies | ISM : 2.4-2.483 GHz (up to 14 channels) |
Output power | 2,4 GHz : 23,5 dBm (aggregate) / 5 GHz : 21 dBm (aggregate) |
Sensitivity max. | WiFi 802.11n receiver : -92 dBm for 802.11 b/g/n and -96 dBm for 802.11a/n |
Radio connectors | 2 N-type connectors |
Security | Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3 |
WiFi Modes | AP, client, MESH (IEEE 802.11s), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS |
Ethernet networking | Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay |
IP routing | Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router |
Administration | http, https, SNMP agent (V1, V2C, V3), WaveManager administration software, save / restore configuration key (C-Key) |
I/O | A 3-pin Waterproof M8 connector with : |
LEDs Signaling | Radio : activity - status | Ethernet : link - activity | Power : on-off | C-Key : activity |
Power supply | +9VDC to +48VDC, redundant, PoE af (at type 1, mode A/endspan compatible), M12 connector 4-pole A-coded |
Consumption | IDLE mode : 1.7 W / Maximum average : 3.92 W / Recommended : 6.5 W |
Dimensions & weight | L : 175 x l : 80 x h : 75 mm (without connectors), weight TBD |

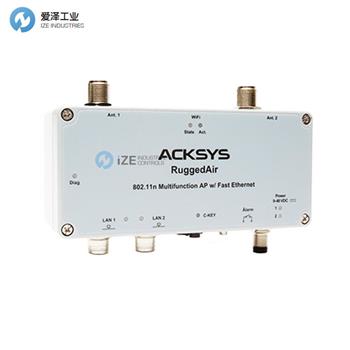

ACKSYS工業路由器RUGGEDAIR/1A介紹
作為與其兼容的前身 (WLg-ABOARD)，RuggedAir100 是一款“一體化”多功能產品（接入點、客戶端、中繼器、路由器和網狀點），專為惡劣環境下的工業應用而設計（IP66 防水、抗沖擊和振動，擴展的溫度范圍，M12 連接器......）。它可用于在地面上創建室內或室外 WiFi 覆蓋，或在船上將所有類型的移動設備或車輛（有軌電車、建筑/農業機械、卡車、自動化起重機、港口起重機...）連接到地面網絡。
? 可靠性：它配備了冗余寬范圍 (9-48 VDC) 或 POE 電源以及 2 根天線，可以增強無線電鏈路的質量。
? 移動性：其漫游性能（<30 毫秒）和抗沖擊/振動能力使其易于集成到任何類型的移動設備或車輛中。
? 易于部署和維護：RuggedAir100 可以通過集中管理軟件 WaveManager 從網絡、通過 SNMP 或從簡單的 Web 瀏覽器輕松管理。它還具有一個 C-Key（密鑰保存配置），可在現場即時更換。
? 安全性：它集成了先進的安全標準（防火墻、VPN、802.1X ...）以及路由和過濾功能，以促進大規模部署。
As its predecessor (WLg-ABOARD) with which it is compatible, RuggedAir100 is an "all-in-one"multifunction product (access point, client, repeater, router & Mesh point) designed for industrial applications in harsh environment (IP66 waterproof, shocks and vibrations proof, extended temperature range, M12 connectors...). It can be used either on the ground to create indoor or outdoor WiFi coverages, or on board to connect all types of mobile equipment or vehicles (trams, construction/agricultural machines,trucks, automated cranes, harbor cranes...) to the ground network.
? Reliability : it is equipped with a redundant wide range (9-48 VDC) or POE power supply as well as 2 antennas making it possible to reinforce the quality of the radio link and to increase the throughputs.
? Mobility : its roaming performances (<30 ms) and its shocks/vibrations resistance make it easy to integrate in any type of mobile equipment or vehicle.
? Ease of deployment and maintenance : RuggedAir100 can be easily managed from the network with the centralized management software WaveManager, through SNMP or from a simple web browser. It also has a C-Key (key saving configuration) for instant replacement on site.
? Security : it integrates advanced security standards (Firewall, VPN,802.1X ...) as well as routing and filtering functions to facilitate mass deployments.
ACKSYS工業路由器其他常用型號：
ACKSYS RuggedAir/1A
ACKSYS RuggedAir/2B
ACKSYS RailBox/RRXB
ACKSYS RailTrack/RRRXB
ACKSYS AirXroad
