THOMSON離合器CB系列技術參數
SPECIFICATIONS | |
Specifications | Value |
Direction of Rotation | CW |
Function | Clutch/Brake |
Input | Hub Input |
Motion Type | Indexing |
Number of Stops | 1 |
Size | 6 |
Voltage | 24 Vdc |
Weight | 7 lb |
PERFORMANCE | |
Performance | Value |
Anti-Back Holding capability, Max | 300 in-lbs |
Anti-overrun holding capability, Max | 300 in-lbs |
Inertia, rotating parts | 1.718 lb-in2 |
Radial bearing maximum load at | 63 lbf |
Response time, Voltage on at full speed | 45 ms |
RPM, Max | 500 RPM |
Static Torque | 500 in-lbs |
THOMSON離合器306-16-055產品介紹及選型
CB系列組合離合器和制動器可精確地啟動和停止由連續旋轉動力源驅動的負載。 CB單元由單個AC或DC脈沖操作，根據尺寸，在高達1800 RPM的速度下將負載停止在±?°內，不會累積。 每個單元都經過預先設計和預裝配，便于安裝。
CB Series combination clutches and brakes accurately start and stop loads driven by a continuously rotating power source. CB units operate from a single AC or DC pulse, stopping the load within ±?° noncumulative at speeds up to 1800 RPM, depending on size. Each unit is preengineered and pre-assembled for easy installation.

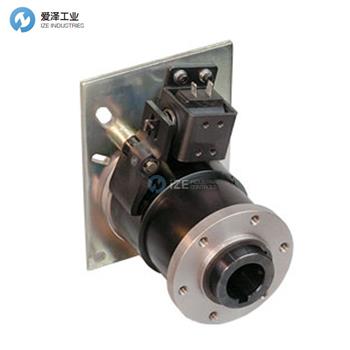

THOMSON離合器306-16-055
愛澤工業(IZE INDUSTRIES)特價經銷、常用THOMSON離合器型號：
THOMSON 306-10-034
THOMSON 306-10-051
THOMSON 306-10-153
THOMSON 306-10-183
THOMSON 306-10-189
THOMSON 306-12-024
THOMSON 306-12-030
THOMSON 306-12-132
THOMSON 306-12-140
THOMSON 306-12-144
THOMSON 306-12-145
THOMSON 306-12-147
THOMSON 306-16-055
THOMSON 306-16-057
THOMSON 306-16-058
THOMSON 306-16-059
THOMSON 306-16-060
THOMSON 306-16-061
THOMSON 306-16-079
THOMSON 306-16-139
THOMSON 306-16-168
THOMSON 306-17-007
THOMSON 306-17-015
THOMSON 306-17-031
THOMSON 306-17-051
THOMSON 306-17-053
THOMSON 306-17-057
THOMSON 306-17-059
THOMSON 306-17-060
THOMSON 306-17-061
THOMSON 306-17-062
THOMSON 306-17-063
THOMSON 306-17-073
THOMSON 306-17-074
THOMSON 306-17-075
THOMSON 306-17-076
THOMSON 306-17-079
THOMSON 306-17-091
THOMSON clutch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于THOMSON離合器306-16-055的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
