REXROTH OIL CONTROL閥CA規格描述
Technical data | |||
Code | Pressure P max bar (psi) | Flow Q max l/min (gpm) | Weight kg (lbs) |
CA 7 | 350 (5000) | 25 (7) | 0.11 (0.24) |
CA 10 | 350 (5000) | 50 (13) | 0.19 (0.42) |
CA 11 | 350 (5000) | 50 (13) | 0.19 (0.42) |
CA 13 | 350 (5000) | 80 (21) | 0.25 (0.55) |
CA 19 | 250 (3600) | 100 (26) | 0.52 (1.15) |
CA 25 | 250 (3600) | 160 (42) | 1.04 (2.29) |
CA 32 | 250 (3600) | 300 (79) | 1.67 (3.68) |
CA 38 | 250 (3600) | 450 (119) | 2 (4.4) |
CA 42 | 250 (3600) | 700 (185) | 3.6 (7.9) |
REXROTH OIL CONTROL閥CA系列尺寸圖
REXROTH OIL CONTROL閥CA選型及介紹
Description
Flow is always allowed to pass from A to B when pressure at A rises above the spring bias pressure and the poppet is pushed from the seat. The valve is normally closed (checked) from B to A.
描述
當A處的壓力升高到高于彈簧偏置壓力且提動閥芯從閥座上推出時，始終允許流量從A流向B。閥門通常從B到A關閉（檢查）。
REXROTH OIL CONTROL閥CA系列其他常用型號：
REXROTH OILCONTROL CA7 R932500066
REXROTH OILCONTROL CA7/2 R932500067
REXROTH OILCONTROL CA7/4 R932500070
REXROTH OILCONTROL CA7/5 R932500071
REXROTH OILCONTROL CA7/8 R932500072
REXROTH OILCONTROL CA10 R932500074
REXROTH OILCONTROL CA10/2 R932500077
REXROTH OILCONTROL CA10/4 R932500080
REXROTH OILCONTROL CA10/5 R932500081
REXROTH OILCONTROL CA10/8 R932500083
REXROTH OILCONTROL CA10/15 R932500076
REXROTH OILCONTROL CA11 R932500085
REXROTH OILCONTROL CA11/4 R932006965

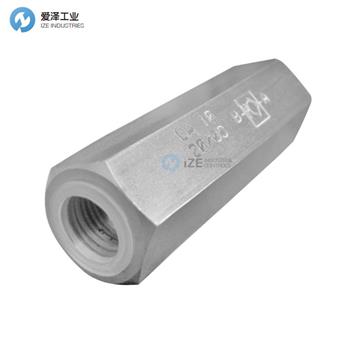

REXROTH OIL CONTROL INLINE CHECK VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥CA7 R932500066的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
REXROTH OIL CONTROL閥CA7 R932500066技術數據
