REXROTH OIL CONTROL閥VBSP-16U-RS系列技術參數
Technical data | |
Max. operating pressure | 420 bar (6000 psi) |
Max. flow | 240 l/min (63 gpm) |
Max. internal leakage | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 200 - 215 Nm (147 - 159 ft-lbs) |
Weight | 0.8 kg (1.76 lbs) |
Cavity | SUN T-17A |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit | Code: RG16U9020110100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |

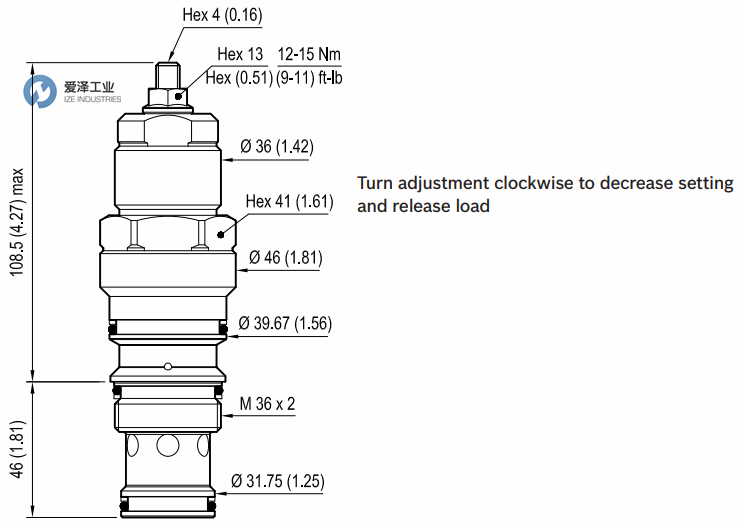

REXROTH OIL CONTROL閥VBSP-16U-RS系列技術尺寸
REXROTH OIL CONTROL閥VBSP-16U-RS系列選型
REXROTH OIL CONTROL閥VBSP-16U-RS系列其他常用型號：
REXROTH OIL CONTROL 045417034720000 R930000059
REXROTH OIL CONTROL 045417034740000 R930000060
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥045417034720000 R930000059的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
REXROTH OIL CONTROL閥045417034720000 R930000059技術數據
