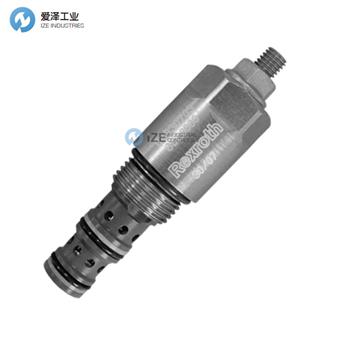

REXROTH OIL CONTROL閥04.93.07-X-85-Z規格描述
Technical data | |
Max. operating pressure port 2 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 1 (A) | 280 bar (4000 psi) |
Max. flow | 60 l/min (16 gpm) |
Standard internal pilot orifice diameter | 0.6 mm |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 41 - 47 Nm (30 - 35 ft-lbs) |
Weight1) | 0.2 kg (0.44 lbs) |
Cavity | CA-10A-3N (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit2) | Code: RG10A3010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) /ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |

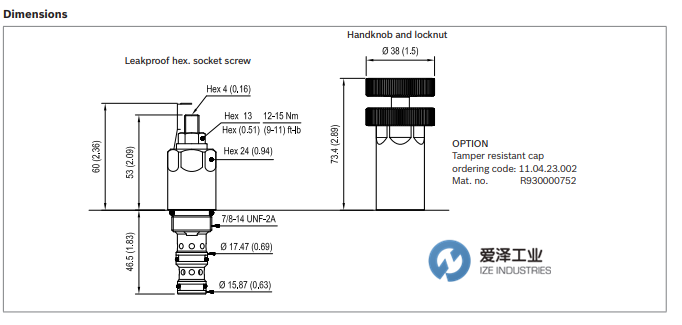

REXROTH OIL CONTROL閥04.93.07-X-85-Z圖紙

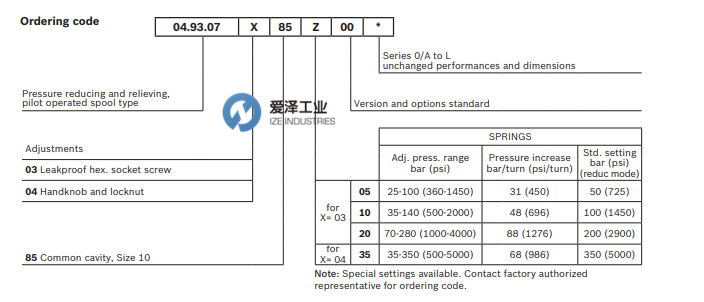

REXROTH OIL CONTROL閥04.93.07-X-85-Z選型
Description
Initially, flow passes freely from 2 to 1. When the pressure at 1 exceeds the pressure setting, the conical poppet in the upper, pilot stage is lifted from its seat. This allows the main-stage piston to shift, restricting input flow at 2. This increases the pressure drop through the valve and maintains consistent pressure at 1. The spring chamber is drained at 3 to prevent a build-up of back-pressure against the spool. Additionally, if pressure at 1 rises above the pressure setting, flow is relieved to 3 until the setting is re-attained.
描述
最初，流量從2自由流向1。當1處的壓力超過壓力設定值時，上方先導級的錐形提升閥從其閥座上提起。這使主級活塞能夠移動，從而將輸入流量限制為2。這會增加通過閥的壓降，并在1處保持恒定的壓力。彈簧腔的排量為3，以防止反壓力的增加。線軸。此外，如果1處的壓力高于壓力設定值，流量將釋放至3，直到重新達到設定值為止。
