REXROTH OIL CONTROL閥06.03.01-X規格描述
Technical data | |
Operating pressure | up to 210 bar (3000 psi) |
Max. flow | 60 l/min. (16 gpm) |
Flangeable on SAUER-DANFOSS orbital motors OMS series. | |
Relief setting: at least 1.3 times the highest expected load. In addition, both the relief setting and the pilot ratio must be determined in order to achieve building-up of pilot pressure in V1 or V2 high enough to release the brake prior to any valve opening. | |
Weight | 1.6 kg (3.5 lbs) |
Manifold material | Aluminium |
Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network. | |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
Other technical data | see data sheet 18350-50 |
REXROTH OIL CONTROL閥06.03.01-X系列尺寸圖

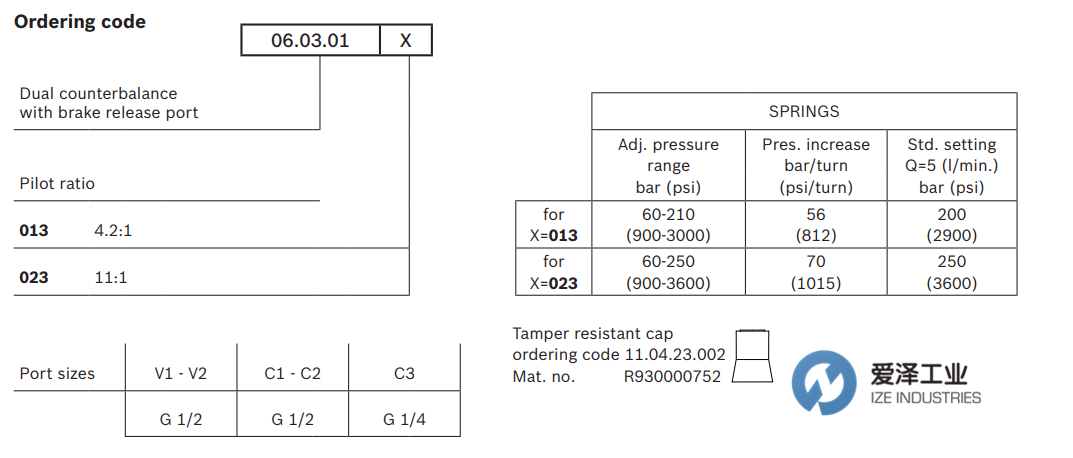

REXROTH OIL CONTROL閥06.03.01-X選型及介紹
Description
It provides static and dynamic motion control by regulating the flow IN and OUT of the hydraulic motor, through ports C1 and C2. It includes 2 sections, each one composed by a check and a relief valve pilot assisted by pressure in the opposite line: the check allows free flow into the motor, then locks and prevents reverse movement. With pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse motion. With motor turning and without pilot pressure, the relief function builds up back-pressure at the motor port in order to stop the motion. Back-pressure at V1 or V2 is additive to the pressure setting in all functions. Through port C3, a shuttle valve directs either V1 or V2 line pressure to the spring actuated brake for brake releasing.
描述
它通過調節液壓油通過端口C1和C2的流入和流出來提供靜態和動態運動控制。它包括2個部分，每個部分由一個止回閥和一個安全閥先導閥組成，該輔助閥在相反的管路中受壓力輔助：該止回閥允許自由流入電動機，然后鎖定并防止反向運動。通過在管路兩端施加先導壓力，安全閥的壓力設定會按規定比例成比例降低，直到打開并允許受控的反向運動。在電動機轉動且沒有先導壓力的情況下，泄壓功能會在電動機端口上建立背壓，以停止運動。 在所有功能中，V1或V2處的背壓都會增加壓力設置。通過端口C3，往復閥將V1或V2管路壓力引導至彈簧致動的制動器，以釋放制動器。
REXROTH OIL CONTROL閥VBSO-DE-VF-30-FM系列其他常用型號：
REXROTH OIL CONTROL 06030101300000C R930002738
REXROTH OIL CONTROL 06030102300000D R930002751
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥 0603010130000C R930002738的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website: www.wap.pnxqid.cn.
REXROTH OIL CONTROL閥0603010130000C R930002738技術數據
