REXROTH OIL CONTROL閥OD.55-X-17.37-Z規格描述
General | ||
Weight | kg (lbs) | 0.28 (0.62) |
Installation orientation | Optional | |
Ambient temperature range | °C (°F) | -30 to 60 (-22 to 140) |
Hydraulic | ||
Max. operating pressure | bar (psi) | 350 (5000) |
Max. flow | 70 (19) | |
Max. internal leakage | 20 | |
Fluid temperature range | °C (°F) | -20 to 80 (-4 to 176) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 54-66 (40-49) | |
Recommended degree of fluid | Nominal value max. 25μm (NAS 8) | |
contamination | ISO 4406 19/17/14 | |
Special cavity | 017-E see RE 18325-75 | |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory | |
Seal kit - version 05 | code | RG17E201052010 |
material no. | R934003562 | |
Seal kit - version 31 | code | RG17E201053010 |
material no. | R934003563 | |
Other technical data | See data sheet RE 18350-50 | |
Only for cam-operated valves: | ||
Operating stroke | mm (in) | 3 (0.12) |
Max. overstroke | mm (in) | 0.5 (0.02) |
IMPORTANT: When valve is not operated, flow from 1 to 2 is not recommended due to high ope- ning pressure.(version 05)
REXROTH OIL CONTROL閥OD.55-X-17.37-Z外觀尺寸圖

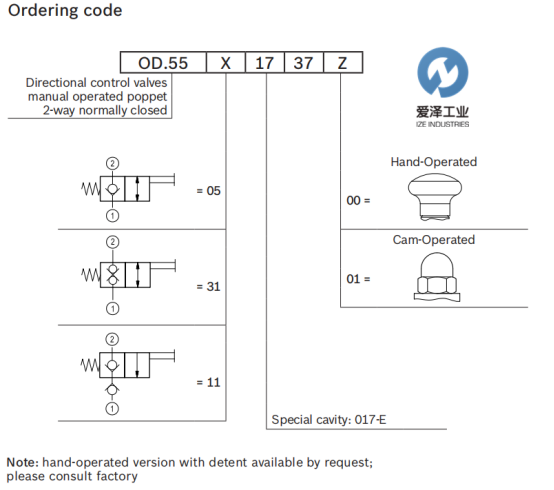

REXROTH OIL CONTROL閥OD.55-X-17.37-Z型號解析
REXROTH OIL CONTROL閥VMI-8A-2A-09-NC系列其他常用型號：
REXROTH OIL CONTROL OD550517370000 R934001424
REXROTH OIL CONTROL OD550517370100 R934001425
REXROTH OIL CONTROL OD553117370000 R934001437
REXROTH OIL CONTROL OD553117370100 R934001438
REXROTH OIL CONTROL OD551117370000 R934003846
REXROTH OIL CONTROL OD551117370100 R934003671
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
