REXROTH_OIL-CONTROL閥08.48.11系列介紹
它通過端口C1和C2調節執行器的流量IN和OUT，提供負載的靜態和動態控制。該閥門模塊包括兩個部分，每個部分由一個止回閥和一個由相反線路中的壓力輔助的減壓閥導閥組成：檢查部分允許自由流入執行機構，然后保持負載防止反向運動; 在橫向施加先導壓力的情況下，釋放的壓力設定與所述比率成比例地減小，直到打開并允許受控的反向流動。V1或V2的背壓是所有功能中壓力設定的附加值。
It provides static and dynamic control of load by regulating the flow IN and OUT of the actuator, through ports C1 and C2. This valve module includes 2 sections, each one composed by a check and a relief valve pilot assisted by pressure in the opposite line: the check section allows free flow into the actuator, then holds the load against reverse movement; with pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse flow. Back-pressure at V1 or V2 is additive to the pressure setting in all functions.

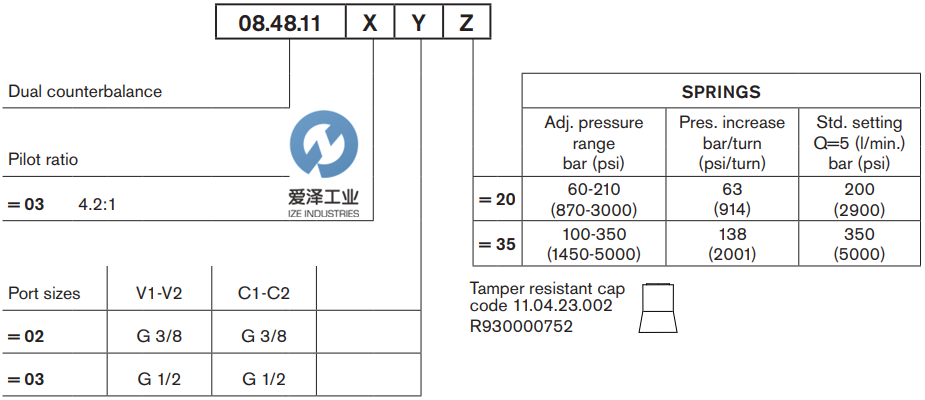

REXROTH_OIL-CONTROL閥08.48.11系列選型介紹

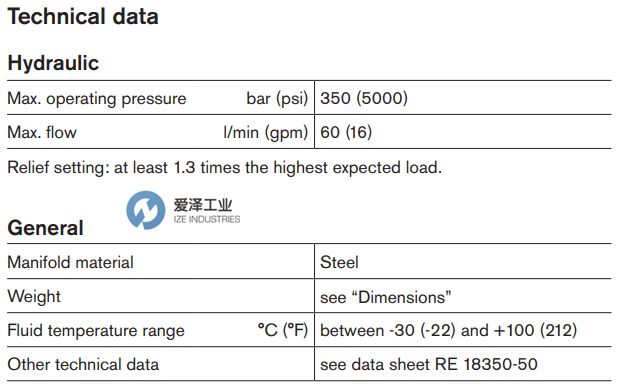

REXROTH_OIL-CONTROL閥08.48.11系列技術參數

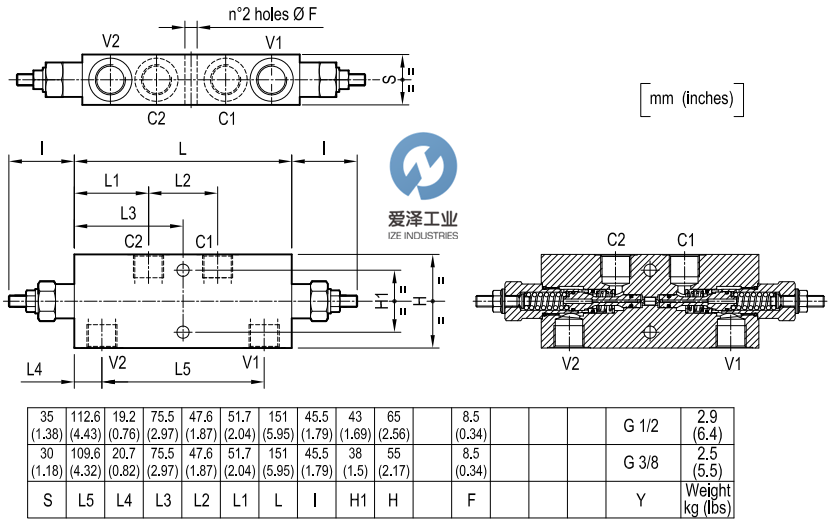

REXROTH_OIL-CONTROL閥08.48.11系列技術尺寸圖

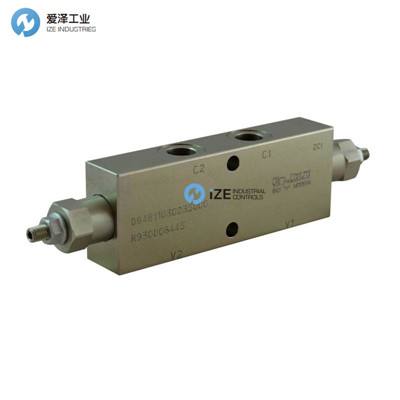

REXROTH_OIL-CONTROL閥084811030235000 R930006445
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH_OIL-CONTROL閥型號：
REXROTH_OIL-CONTROL閥084811030220000 R930006936
REXROTH_OIL-CONTROL閥084811030235000 R930006445
REXROTH_OIL-CONTROL閥084811030320000 R930006817
REXROTH_OIL-CONTROL閥084811030335000 R930006818
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH_OIL-CONTROL閥084811030235000 R930006445的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH_OIL-CONTROL閥084811030235000 R930006445更詳細的信息或者購買意大利REXROTH_OIL-CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.wap.pnxqid.cn.
REXROTH_OIL-CONTROL閥084811030235000 R930006445技術參數
