REXROTH OIL CONTROL泵EPM-DE-18系列技術參數
Technical data | |
General | |
Weight of the EPM (hand pump slice) kg (lbs) | 3.7 (8.2) |
Weight of the extension lever kg (lbs) | 0.7 (1.5) |
Ambient Temperature °C (°F) | –20....+50 (-4....+122) (NBR seals) |
Hydraulic | |
Maximum resistance pressure bar (psi) | 310 (4500) |
Maximum generated pressure bar (psi) | 250 (3625) |
Total displacement cc (in3) | 18 (1.08) |
Opening displacement cc (in3) | 8.5 (0.51) |
Closing displacement cc (in3) | 9.5 (0.57) |
Maximum aspiration height m (ft) | 1.5 (4.92) (with pipe DN6) |
Fluid Temperature °C (°F) | –20....+80 (-4....+176) (NBR) |
Permissible degree of fl uid contamination | ISO 4572: βx≥75 X=12...15 |
Viscosity range mm2/s | 5....420 |
Maximum internal leakage cc/min (in3/min) | 0.2 (0.012) |

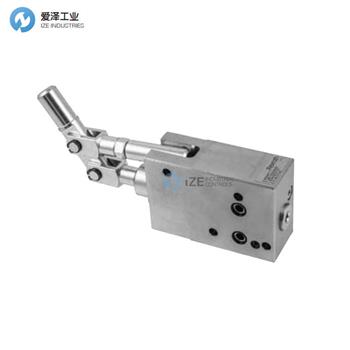

REXROTH OIL CONTROL泵EPM-DE-18系列產品介紹
建議在入口板和 ED 模塊化方向閥之間安裝帶有輔助手動泵的中間板。 還建議將帶有輔助手動泵的中間板置于頭部下方。 當與 LS 方向閥一起使用時，請?zhí)峁┮环N方法來關閉通往泵的 LS 信號。 當與開心補償器（例如 TE-06）一起使用時，請選擇可鎖定在關閉位置的補償器。
It is reccomended to install this intermediate plate with auxiliary hand pump between the inlet plate and the ED modular directional valves. It is also reccomended that the intermediate plate with auxiliary hand pump is under head. When used with LS directional valve, please provide a mean to close the LS signal going to the pump. When used with open center compensator (e.g. TE-06) select a compensator that can be locked in closed position.
REXROTH OIL CONTROL泵EPM-DE-18系列其他常用型號：
REXROTH OIL CONTROL L88710000000000 R930067711
REXROTH OIL CONTROL L88710000000001 R930067712
REXROTH OIL CONTROL L88710000000002 R930069614
