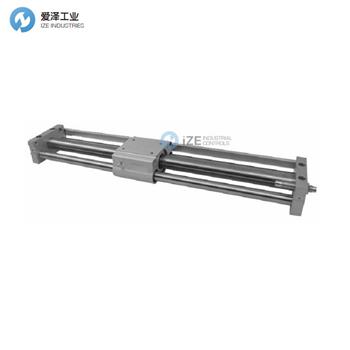

BIMBA導軌UGS-00710-B參數介紹
Specifications | |
Primary brand | Bimba |
Main function | Pneumatic linear actuator |
Product series / family name | Ultran Slide rodless cylinder series |
Sub-range name | UGS-007 series |
Bore size | 5/16" bore (B5/16") |
Stroke length | 20" stroke (S20") |
Functions | Double-acting linear rodless air-hydro slide cyl. actuator |
Design | gold coupl. strength |
Pressure | 100psi pressure rating (air or hydraulic) |
Connection type | 2 x #10-32 threaded pneumatic ports |
Material | Stainless steel 304 body |
Ambient air temperature for operation | 0...+170°F / -17...+76°C |
Force | 13lb magnetic coupling strength |
Manufacturer product status | Commercialized |
Benefits | Options include stroke adjustment (both ends or one end) |
BIMBA導軌其他常用型號：
Bimba UGS-090.25
Bimba UGS-045.75-A1
Bimba UGS-0412-B
Bimba UGS-096.5-U
Bimba UGS-0417-B
Bimba UGS-129.125
Bimba UGS-022-T
Bimba UGS-00720-B
Bimba UGS-016-A1B2U
BIMBA guide NEW + ORIGINAL+ ONE YEBIMBA WBIMBARANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BIMBA導軌UGS-00710-B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BIMBA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@wap.pnxqid.cn / browse our website:www.wap.pnxqid.cn.
BIMBA導軌UGS-00710-B技術參數
