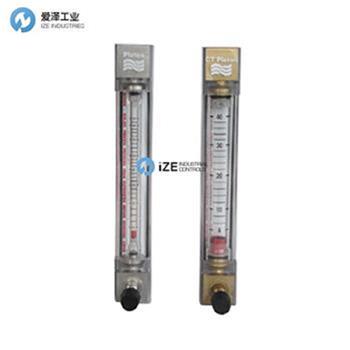

PLATON流量計NGX系列產品介紹
SPECIFICATION – FRAMES | |
Backplate | White polyester powder coated aluminium |
End Blocks | Suffix B – Bright nickel plated brass |
Seals | Nitrile on brass units |
Cover | Clip on clear UV stablised rigid polycarbonate(required to locate flow tube into end blocks) |
Connections | Models available with in-line or rear facing process connections. |
Max. Temp | 100°C with viton seals 80°C with nitrile seals |
Max. Pressure | Recommended maximum operating in nonshock applications: 16 bar |
Valve Option | Fine control valve option has needle valve fitted on flowmeter inlet. |
Mounting Stud | M5 studs 13mm long c/w nut |
SPECIFICATION – FLOWTUBES | |
Flowtube | Borosilicate glass, precision moulded in three diameters to suit flow range |
Scale | Fused ceramic black ink |
Scale Length | NGX Series – 100mm nominal |
Float | Precision machined float, rotates to give flow visualisation |
Model HD: Hollow Dural, red anodised | |
Model HS: Hollow Stainless Steel | |
Model SS: Solid Stainless Steel | |
Accuracy | ±1.25% FSD standard for NGX Series(±2.5% for 1CHD/BHD models, ±3% for predicted scales) ±5% FSD for LGX Series |
Calibration | All tubes are flow tested. Standard scales are for air & water, as listed. Custom scales to suit process fluid |
PLATON流量計NGX系列產品介紹
改善工業化建設
易于使用，可見度高
后方“吹出”安全通風孔
人機工程學設計
紫外線穩定的剛性安全罩
氣體或液體流量測量
浮子旋轉帶來的操作員信心
瞬時反應
精度高達±1.25％FSD
風量范圍5mL / min至150 L / min
定制秤
無需工具即可拆卸玻璃管
ATEX紅外警報選項
配件范圍
UKAS校準可選
Improved industrialised construction
Easy to use, high visibility scale
Rear ‘blow out’ safety vent
Ergonomic design
UV stabilised rigid safety cover
Gas or liquid flow measurement
Operator confidence from float rotation
Instantaneous response
Accuracy up to ±1.25% FSD
Air flow range 5mL/min to 150 L/min
Customised scales
Glass tube removal without tools
ATEX Infra-red alarm option
Range of accessories
UKAS calibration optional

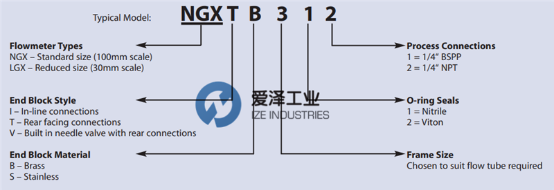

選型參考
PLATON流量計NGX系列其他常見型號：
PLATON NGXIB311
PLATON NGXTS322
PLATON NGXVB311
PLATON NGXVS322
