LINEMASTER腳踏開關511-B4OXA規格描述
511-B4OXA | |
Switch Type | Electrical |
Actions | 2-Stage Momentary |
Circuitries | SPDT-DB (Form "Z") |
Housing Colors | Orange |
Housing Materials | Cast Iron |
Shields & Guards | OX Shield |
Electrical Ratings | 1 HP 250 VAC, 1/2 HP 125 VAC, 15A, 125-250 VAC |
LINEMASTER腳踏開關511-B4OXA優勢及選型
FEATURES & BENEFITS
Heavy duty foot switch features an anti-trip treadle mechanism that helps prevent accidental actuation through unintentional stepping on foot treadle
Switch operation requires that the latch trip lever be released prior to depressing the foot treadle as in-line foot pressure is applied to the latch trip lever located at the rear of the foot treadle
Smooth trip lever release and treadle depression motion results in good rate of operation
Dual treadle return springs and latching mechanism
Anti-skid rubber feet and 3 holes for rigid mounting to floor or equipment
All Models have a neoprene Cover Gasket plus O-Rings on the Actuating shaft and separate ground screw
特點與優勢
重型腳踏開關具有防脫踏踏板機構，有助于防止意外踩踏踏板
開關操作要求在踩下腳踏板之前松開閂鎖跳閘桿，因?yàn)樵谀_踏板后部的閂鎖跳閘桿上施加了直線腳踏壓力
平穩的脫扣桿釋放和踏板凹陷運動導致良好的操作速率
雙踏板復位彈簧和鎖定機構
防滑橡膠支腳和3個孔，可牢固地安裝在地板或設備上
所有型號都有一個氯丁橡膠蓋墊片和驅動軸上的O形圈以及單獨的接地螺釘

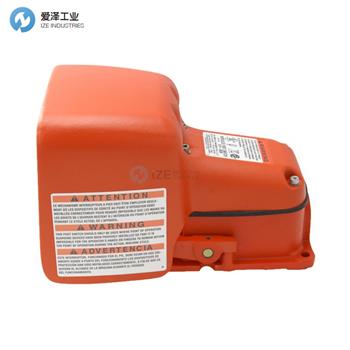

LINEMASTER腳踏開關511-B4OXA
愛澤工業(IZE INDUSTRIES)特價經銷、常用LINEMASTER腳踏開關型號：
LINEMASTER 511-B
LINEMASTER 511-BO
LINEMASTER 511-BOX
LINEMASTER 511-BG
LINEMASTER 511-BOXG
LINEMASTER 511-B21
LINEMASTER 511-B2O1
LINEMASTER 511-B2OX1
LINEMASTER 511-B2G1
LINEMASTER 511-B2OXG1
LINEMASTER 511-B2A
LINEMASTER 511-B2OA
LINEMASTER 511-B2OXA
LINEMASTER 511-B2GA
LINEMASTER 511-B2OXGA
LINEMASTER 511-B3
LINEMASTER 511-B3O
LINEMASTER 511-B3OX
LINEMASTER 511-B3G
LINEMASTER 511-B3OXG
LINEMASTER 511-B41
LINEMASTER 511-B4O1
LINEMASTER 511-B4OX1
LINEMASTER 511-B4G1
LINEMASTER 511-B4OXG1
LINEMASTER 511-B4A
LINEMASTER 511-B4OA
LINEMASTER 511-B4OXA
LINEMASTER 511-B4GA
LINEMASTER 511-B4OXGA
LINEMASTER Foot switch NEW + ORIGINAL+ ONE YEAR WARRANTY
