自動化廢水處理過程（中英文）
如何確保最終廢水處理過程正常運行，并且流出物安全且可追溯？首先將 pH 值調整過程自動化。
pH 值高或低的廢水被收集在泵提升站中，該泵提升站可以方便地放置在實驗室站下方或地面以下。
然后，廢水被泵送到批量 pH 調節系統，該系統使用連接到多參數控制器（GF Signet 9950 SmartPro 雙通道變送器）的潛水式 pH 傳感器（帶 3-2724 電極的 GF Signet 2751-3 傳感器）。
控制器有兩個 4-20 mA 環路輸出，可按比例驅動化學計量泵（Grundfos智能數字計量泵）。
超聲波液位傳感器（Flowline DL14 Echopod）監測處理罐液位，并向 9950 發出裝滿和空著的信號。9950 中的高級布爾邏輯功能允許將最多三個液位傳感設備連接到一個繼電器中。 3-9950-2 提供雙通道多參數輸入和兩個 4-20 mA 輸出。
為確保符合當?shù)嘏欧乓?，請安裝在線 pH 傳感器 (GF Signet 2751-1) 以在廢水進入下水道之前對其進行監測。在 9950 多參數變送器的幫助下，如果廢水流 pH 值不符合要求，上游 Georg Fischer 驅動閥將關閉。

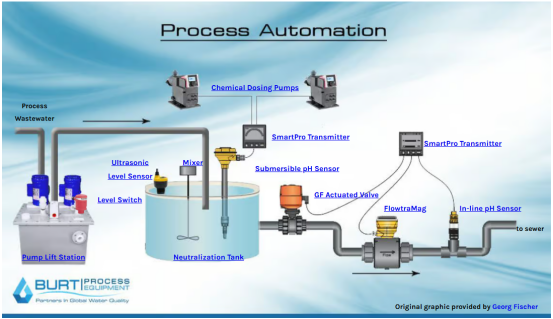

How do you ensure your final wastewater treatment process is working properly and the effluent stream is safe and accounted for? Start by automating your pH adjustment process.
Wastewater streams with high or low pH values are collected in a Pump Lift Station that can be conveniently placed under lab stations or below floor level.
The waste stream is then pumped to a Batch pH Adjustment System, which uses a submersible pH sensor (GF Signet 2751-3 sensor with 3-2724 electrode) connected to a multi-parameter controller (GF Signet 9950 SmartPro dual-channel transmitter).

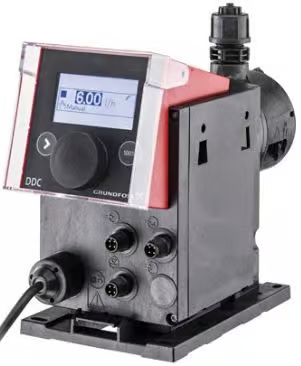

There are two 4-20 mA loop outputs from the controller that will proportionally drive your chemical metering pumps (Grundfos Smart Digital Dosing).
An Ultrasonic Level Sensor (Flowline DL14 Echopod) monitors treatment tank liquid levels and signals the 9950 for fill and empty conditions. Advanced Boolean Logic Function in the 9950 allows up to three level sensing devices to be tied into one relay. The 3-9950-2 provides two-channel multi-parameter inputs and two 4-20 mA outputs.
To ensure compliance with local discharge requirements, install an in-line pH sensor (GF Signet 2751-1) to monitor the effluent before it goes to the sewer. With the help of the 9950 multi-parameter transmitters, the upstream Georg Fischer actuated valve will close if effluent stream pH levels are not in compliance.
使用 GF 2580 FlowtraMag 測量廢水流量，并可將數字信號發送到 9950 進行總計。對于長期報告，可以從 9950 或直接從 2580 FlowtraMag 向樓宇自動化系統發送 4-20 mA 信號。
當當局提供最終的廢水排放量，而不是根據用于運行其設施的輸入清潔水向用戶收費時，可以實現巨大的節省。

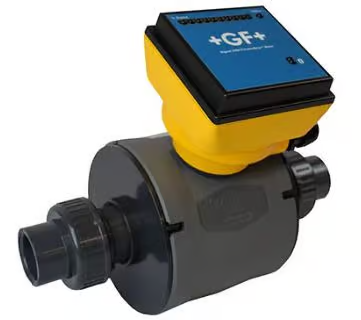

Effluent flow is measured with the GF 2580 FlowtraMag and a digital signal can be sent to the 9950 for totalization. For long-term reporting, a 4-20 mA signal can be sent to the building automation system from either the 9950 or directly from the 2580 FlowtraMag.
Big savings can be realized when authorities are provided final outgoing wastewater numbers instead of charging users based on incoming clean water used to run their facility!
